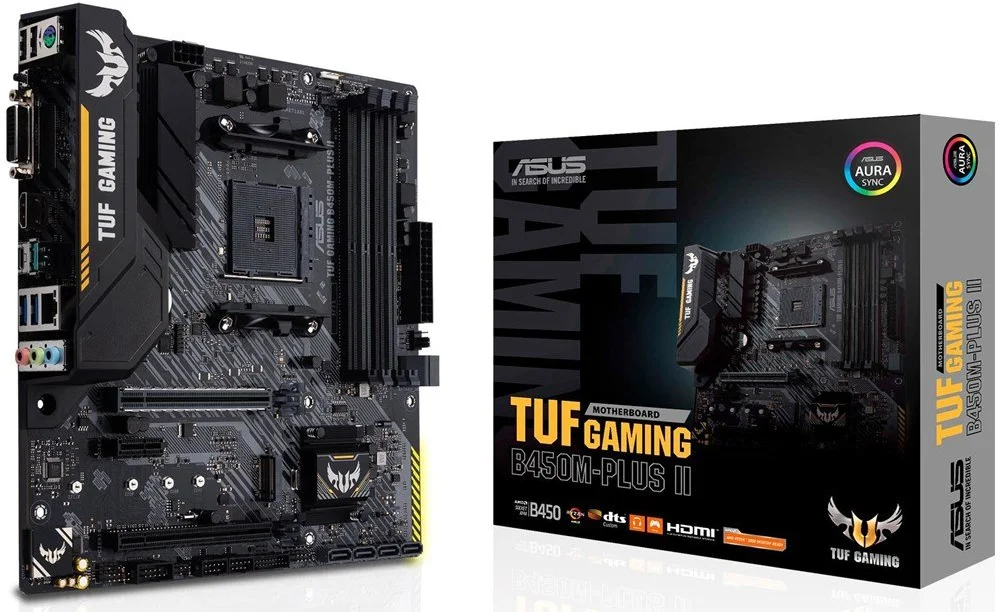

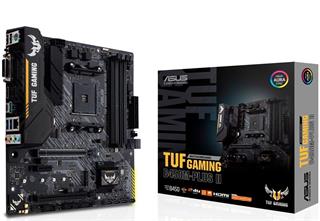

ASUS TUF Gaming B450M-PLUS II

Otestováno servisem výrobce. Chipset: AMD B450 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU Grafická karta: Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics) Multi GPU: AMD 2-Way CrossFireX Technology Zvuková karta: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC Síťová karta: Realtek RTL8111H 1Gb Ethernet Rozšiřující sloty: 3rd/2nd/1st Gen AMD Ryzen™ Processors 1x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1x PCIe 3.0/2.0 x16 (x8 mode) Athlon™ with Radeon™ Vega Graphics Processors 1x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1x PCIe 2.0 x16 (x4 mode) 1x PCIe 2.0 x1 RAID řadič: 0, 1, 10 SATA: 6x SATA 6Gb/s ports M.2: 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: zadní USB porty ( celkem 6 ) 1x USB 3.2 Gen 2 port(s)(1 x Type-A) 3x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) 2x USB 2.0 port(s)(2 x Type-A) přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 port(s)(2 x Type-A) 4x USB 2.0 port(s)(4 x Type-A) Interní porty: 1x CPU Fan connector(s) 2x Chassis Fan connector(s) 1x Aura RGB Strip Header 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x SPI TPM header 6x SATA 6Gb/s connector(s) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin EATX 12V Power connectors 1x Front panel audio connector(s) (AAFP) 1x Clear CMOS jumper(s) 1x System panel connector 1x COM port header 1x Speaker connector Externí porty: 1x PS/2 keyboard/mouse combo port(s) 1x DVI-D 1x HDMI 1x LAN (RJ45) port(s) 1x USB 3.2 Gen 2 (teal blue)Type-A, 2x USB 3.2 Gen 1 (blue) Type-A 1x USB 3.2 Gen 1 (black) Type-C 2x USB 2.0 3x Audio jack(s) 1x BIOS FlashBack™ Button(s) Obsah balení: User's manual I/O Shield 2x SATA 6Gb/s cable(s) 1x Supporting DVD 1x TUF Gaming Sticker 1x TUF Certification card(s) 1x M.2 SSD screw package(s)
