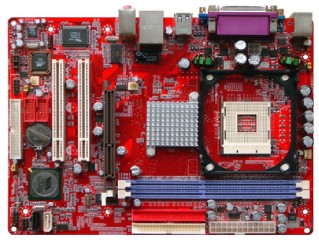

MB JETWAY PM9MSR2 VIAPM800+8237 S478 DDR SATA AGP8x GK+LAN mATX

Základní deska určená pro procesory Intel s paticí 478 podporující 400/533/800MHz FSB s integrovanou grafickou, zvukovou a síťovou kartou, s diskovým rozhraním SATA i PATA za vynikající cenu.



Processor
Support Socket 478B processor for Intel PentiumO 4 (mPGA478) package processor ,Support 533/800MHz System Bus Frequency
Hyper Threading CPU/Prescott CPU Support

Chipset
VIA P4M800 Memory Controller Hub (MCH)
VIA 8237R South Bridge

Jumpless
Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio

Expansion Slot
Two 32-bit PCI Bus Master Slots
One AGP 4/8X Slot (1.5V Only)

System Memory
2 x 184-pin DDR Module Socket support DDR266/DDR333/DDR400 DDR SDRAM up to 2.0GB System memory

On Board LAN
Support IEEE 802.3 10/100BASE T Standard
Support Boot On LAN function

On Board VGA
VGA memory share 16~64M from system memory
24-bit true-color RAMDAC up to 250MHz pixed rate
Resolution up to 1920 x 1440

On Board IDE
Support 2 X IDE Connectors for up to 4 IDE Drives
Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s
Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/s
Support LS-120 / ZIP Device

Serial ATA
Support 2 Serial ATA Port provide 150MB/s (Max),Data transfer rate
Support RAID 0, RAID 1, RAID 0+1, and JBOD (S-ATA)

On Board 3D Audio
Software Audio Controller With On Board 6-Channel CODEC Compliant to AC97'
Support 3D Surround & Positioning, Full Duplex

On Board Ultra I/O
1 X Serial Ports (16550 Fast UART Compatible)
1 X Parallel Port (EPP and ECP capabilities)
1 X Floppy Disk Connector (Supports 2 Floppy Drivers)
1 X PS2 Mouse Connector
1 X Keybord Cnnector
3 X Three Wire FAN Connector (Include CPU FAN)
1 X LINE IN / LINE OUT / Microphone Connector
2 X Analog Audio CD Music line Connectors (different connector)

On Board USB
8 X USB2.0 Ports Connector
Support USB Keyboard & USB Mouse

Power Saving
ACPI/APM Power Management
Modem Ring remote wake up
RTC Alarm Wake up
Support Software Suspend & Power off
Support Suspend to DISK
Wake on LAN For OS
Support Auto Power ON After Power Fail Function
Support Keyboard Password / Hot-Key / Any Key Power on Function
Support PS2 Mouse Button Click Power On
Support Keyboard98 Power on Function
Support Power Button Ride (Instant off or Delay 4 second power off)
Power Fail Recovery support

Power Supply
Support 20-pin ATX power supply (ATX-PW)

Dimension
Micro ATX Form Factor

Více informací naleznete na: http://www.jetway.com.tw/evisn/product/p-4/pm9msr2/pm9msr2.htm
